DAGmin

DAGmin is an R package that implements an algorithm for the enumeration of all minimally-sized covers (exact or not) of a set X that are consistent with relationships established by a directed acyclic graph (DAG). Covers are formed from combinations of defined subsets of X, and each defined subset is mapped to a node of a DAG.

An acceptable cover meets three criteria:

1. The coverage property: The union of all subsets contained in the cover is the set X.
2. The DAG-consistency property: If i -> j is an edge in the DAG, then any cover that includes subset i must also include subset j.
3. The minimality property: If any subset is removed from the cover, it breaks properties (1) or (2) or both.

Installation in R

This package is in the development stage! Feedback and questions are welcome.

Code is available at https://github.com/robert-rovetti/DAGmin. You can install the development version of DAGmin in R by running:

library(pak)
pak("robert-rovetti/DAGmin")

Example

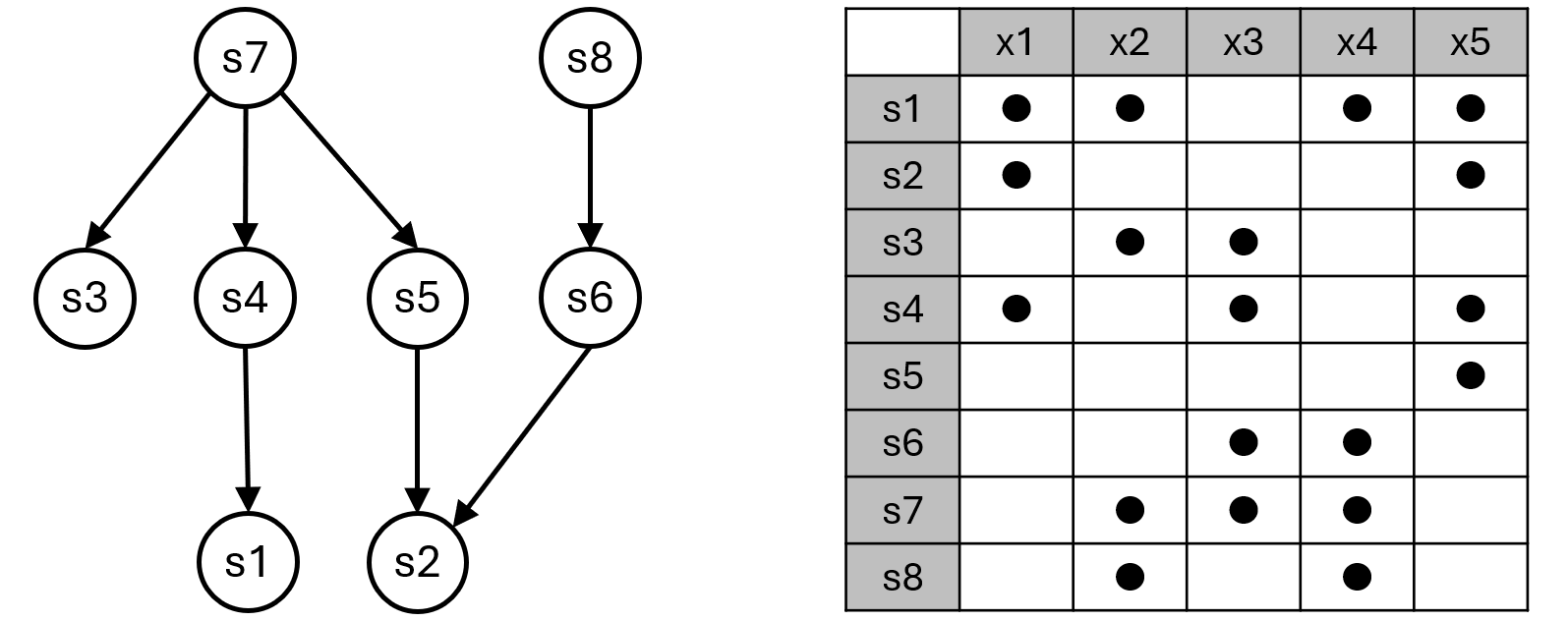

Let’s start with a simple set X = {x1, x2, x3, x4, x5}, and then take various subsets of X. The subsets are named s1 through s8, and together form the family S of subsets. In the table, the columns are the elements of the set X, and the rows indicate the various subsets of X.

The subsets are also related to each other through this DAG, where the arrows indicate requirement.

The goal is to find various combinations of the subsets such that all elements of X are represented at least once (duplications are OK), and such that the requirement criteria are also met, and such that the combinations are “minimal” in size (ie, no unnecessary subsets).

Both the subset matrix and the DAG adjacency matrix can be represented by zero-one matrices:

S <- as.matrix(read.csv('http://dagmin.rovero.org/data/S.csv', header=FALSE, row.names=NULL))
G <- as.matrix(read.csv('http://dagmin.rovero.org/data/G.csv', header=FALSE, row.names=NULL))

S
#>      V1 V2 V3 V4 V5
#> [1,]  1  1  0  1  1
#> [2,]  1  0  0  0  1
#> [3,]  0  1  1  0  0
#> [4,]  1  0  1  0  1
#> [5,]  0  0  0  0  1
#> [6,]  0  0  1  1  0
#> [7,]  0  1  1  1  0
#> [8,]  0  1  0  1  0

G
#>      V1 V2 V3 V4 V5 V6 V7 V8
#> [1,]  0  0  0  0  0  0  0  0
#> [2,]  0  0  0  0  0  0  0  0
#> [3,]  0  0  0  0  0  0  0  0
#> [4,]  1  0  0  0  0  0  0  0
#> [5,]  0  1  0  0  0  0  0  0
#> [6,]  0  1  0  0  0  0  0  0
#> [7,]  0  0  1  1  1  0  0  0
#> [8,]  0  0  0  0  0  1  0  0

Calling DAGmin is a simple matter of supplying the subset matrix (S) and the DAG adjacency matrix (G):

library(DAGmin)
results <- dagmin(S,G)

We can view the generated covers to see which subsets are in each cover:

results$covers
#> [[1]]
#> [1] 1 4
#>
#> [[2]]
#> [1] 2 6 8
#>
#> [[3]]
#> [1] 1 3
#>
#> [[4]]
#> [1] 1 2 6
#>
#> [[5]]
#> [1] 2 3 6
